SILICON VIDEO® 1281 CMOS Color Camera with PIXCI® D2X1 PCI Interface

Picture of PIXCI® D Card

*Lens optional.

  • SILICON VIDEO ® 1281 Camera Head
  • Infrared Cut Filter (1281C)
  • 1 Meter Interface Cable (default)
  • PIXCI ® D2X1 Digital Frame Grabber
  • XCAP-Lite Imaging Program
  • 1280 x 1024 8-bit Capture @ 30 fps
  • Triggered Sequence Capture
  • Sequence Save (XCAP-Ltd or Std)
  • 132 MB/s Burst Transfers
  • Camera Integration and Reset Control
  • PCI Bus: 32 or 64 bit, 3.3 or 5 volt
  • Windows & Linux, 32 & 64–bit

SILICON VIDEO 1281 CMOS camera system offer the advantages of high resolution progressive scan image capture, low noise digital signalling, small size, convenient software control, the availability of extensive processing, measurement, and analysis capabilities, and low cost. The 1281C is an 8-bit Bayer pattern color camera. XCAP software provides control of all camera operations.

SENSORS BY SYMAGERY - SILICON VIDEO 1281 cameras are based on VCA1281 CMOS sensors from Symagery Microsystems. These progressive scan sensors offer continuous and single frame rolling shutter modes, windowing, anti-blooming, and an active programmable array resolution of 1280 x 1024 pixels.

PIXEL CLOCK AND FRAME RATE - The SILICON VIDEO 1281 cameras have a variable frequency pixel clock that generates user-selectable frequencies from 1 MHz to 43 MHz. An increase in the pixel clock frequency provides a higher frame rate. For example, capture a 1280 x 1024 image at 1 fps using a 1 MHz pixel clock - or capture the same resolution at 30 fps using a 43 MHz pixel clock. With a resolution of 64 x 64, capture 105 fps at 1 MHz, or 4534 fps at 43 MHz.

SINGLE CABLE - One cable connects the SILICON VIDEO 1281 camera head to the PIXCI D2X1 board. The PIXCI D2X1 provides power to the camera, sends and receives camera control signals, generates the programmable pixel clock, and receives video data. A separate power supply and power cable are not required.

CAPTURE & ADJUST DIALOG - The XCAP Imaging Application provides a Capture & Adjust Dialog for selecting pixel clock frequency, integration/exposure time, capture resolution, gain, offset, trigger control, and more. The color camera dialog provides automatic white balance as well as manual adjustment of Red, Green, and Blue gain.

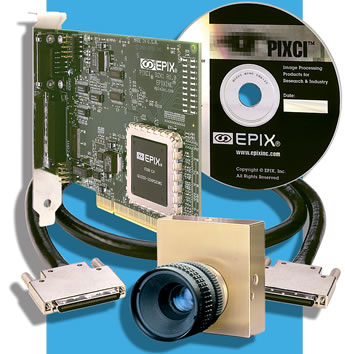

SILICON VIDEO 1281 camera systems include the following items:

  • SILICON VIDEO 1281 Color Camera Head
  • Infrared Cut Filter (color camera)
  • Interface Cable (various lengths)
  • PIXCI D2X1 PCI Image Capture Board
  • XCAP-Lite Imaging Program

To complete the system add a 2/3" C-Mount lens, optional XCAP-Ltd or XCAP-Std program, and computer - all available from EPIX, Inc., or an authorized distributor of EPIX® imaging products.

FEATURES

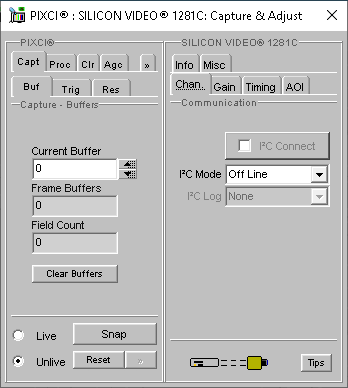

Example of SV1281C Capture & Adjust Dialog.
SV1281C Capture & Adjust Dialog

The XCAP Imaging Program simplifies camera operation with a dedicated Capture & Adjust Dialog that provides one convenient location for controls such as exposure, resolution, triggering, color balance and frame rate. In addition, the SV1281 Dialog provides a camera-to-computer communication indicator, a programmable pixel clock, and exposure times synchronized to AC power.

Camera-to-computer communication is confirmed by a communication graphic. The presence or absence of the 2 lines between the camera and computer icons indicate whether or not the computer and camera are connected and capable of communicating.

The camera's pixel clock frequency is user-selectable over a range of 1 MHz to 43 MHz. The programmable pixel clock generates a wide range of frame rates and exposure times.

The intensity of AC lighting fluctuates with the phase of the AC power. Capturing sequences of images using arbitrary frame rates with AC lighting will result in images with differing brightness. The SV1281 Capture & Adjust Dialog offers a convenient solution - exposure times can be limited to multiples of the local AC power frequency, either 1/50 th or 1/60 th second. Synchronizing exposure times to the AC power provides images with consistent illumination from a 50 or 60 Hz AC light source.

SPECIFICATIONS

VCA1281 SENSOR SPECS
Resolution:
1280 H x 1024 V Maximum
2 H x 2 V Minimum
Sensor Size:
8.96mm x 7.17mm x 11.5 mm Diag
Optical Format:
2/3"
Pixel Size:
7 µm x 7 µm
Pixel Sensitivty:
7.9V/(mW/cm2 -s)
(Normalized to Unity gain)
Fill Factor:
60%
Dynamic Range:
> 50 dB

EPIX SOFTWARE Support
Supported by XCAP-Lite (no charge with board purchase), XCAP-Ltd, XCAP-Std, XCLIB, and XCLIBIPL.
Compatible with 32-bit & 64-bit Windows 10, 8, 7, Vista, XP, 2000, LINUX, and 32-bit DOS. Also TWAIN and Image-Pro Compatible.

MAXIMUM FRAME RATE EXAMPLES:
30 fps 1280 H x 1024 V
86 fps 774 H x 580 V
123 fps 640 H x 480 V
393 fps 342 H x 256 V
15740 fps 1280 H x 2 V
(8 bits per pixel @ 43 MHz pixel clock)
CAMERA HEAD:
Dimensions: 6.9 cm H x 6.5 cm W x 2 cm D
2.7" H x 2.6" W x .8" D
Weight:
175 Grams (6.1 Ounces)
Lens:
2/3" C-mount
CE / FCC CERTIFICATION:
Tested per EMC directive 89/336/EEC and performed to class B.
PCI BUS REQUIREMENTS:
3.3 Volt or 5 Volt PCI slot
1.55 Amps @ +5 Volts
PIXCI D2X1 (Imaging Board) Dimensions:
12.5 cm L x 9.3 cm H
4.94" L x 3.63" H [short slot]
PIXEL CLOCK:
1 MHz - 43 MHz
FORMAT:
SV1281C - Bayer Pattern Color
IR CUT FILTER:
See EPIX web site for frequency response.
EXPOSURE:
47 ns to 1.38 sec

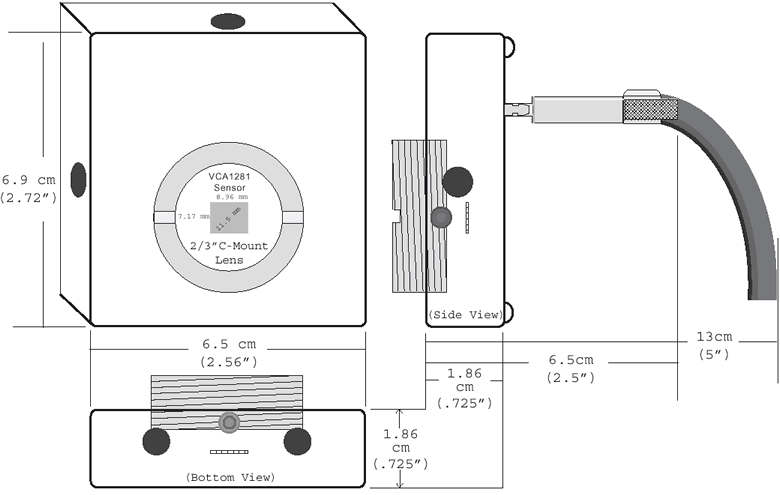

SV1281 Dimensions

Five 1/4” 20 (standard) tripod mounting holes are centered horizontally/vertically in the top and two sides of the camera body — there are two mounting holes in the bottom. These holes are centered 7.6 mm from the front of the camera. Two setscrews secure the lens mount to the camera body.

Camera Side View showing front-to-back
clearances for camera body, cable connector,
and for the flexible interface cable.

SV1310 Back View

Weight:
Only 175 Grams or 6.1 Ounces

Sensor:
Symagery VCA1281M Monochrome
Symagery VCA1281C Color

Imaging Board:
D2X1-SV1281M or D2X1-SV1281C

Optics:
2/3” C-Mount Lens with 17.526mm Flange Distance

Wavelength
Average Light Transmission
190 nm to 380 nm
0.07%
385 nm to 400 nm
55.28%
405 nm to 625 nm
89.22%
630 nm to 670 nm
20.32%
675 nm to 1100 nm
0.87%
