Low Cost PCI Express x1 Frame Grabber for Camera Link Cameras

Full, Medium & Base Configuration Camera Link Frame Grabber
PCI Express x1 Bus
250 Megabyte/sec Burst Transfers
Line Scan or Area Scan
Camera Frame Rate Sequence Capture
Triggered Image Sequence Capture
64-Bit Memory Addressing
Camera Integration & Async Reset Control
Integration From Microseconds to Minutes
Images Stored in Motherboard Memory or RAID Array
Compatible with Windows XP, 2000, Linux & 32–bit DOS
RoHS Compliant Boards Available

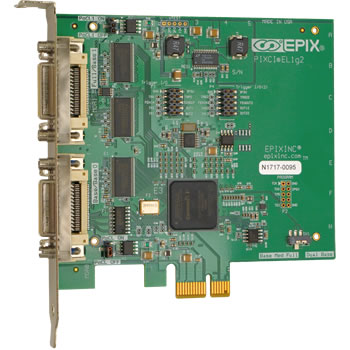

The PIXCI® EL1 frame grabber supports Full, Medium, and Base configuration Camera Link cameras. Compatible with the PCI Express x1 (by one) bus, the EL1 frame grabber interfaces to more than 100 of the newest, most advanced, highest bandwidth machine vision cameras available.

The PIXCI EL1 offers:

Up to 204 Megabyte per second (sustained) data transfer to the host computer.
Camera specific controls - exposure, bit depth, gain, frame rate, etc.
Camera operation in free-run mode for maximum frame rate sequence capture.
Camera operation in control (trigger) mode.
Low price - only $895.00 with XCAP-Lite imaging program.

The PIXCI EL1 is a plug-n-play frame grabber requiring no hardware setup or adjustment. Install the board, load the software, connect the camera, and begin to capture images. Upon startup, the XCAP imaging program reads a camera identification chip on the PIXCI EL1 frame grabber, allowing XCAP to load the appropriate video format and display the camera's dedicated Capture & Adjust Dialog.

Interfaces to almost any camera link camera. The PIXCI EL1 frame grabber requires a x1 or wider PCI Express slot. Few high bandwidth cameras exceed the 204 MB/sec maximum throughput of the PIXCI EL1 board. Support for higher bandwidth cameras is available with the PIXCI E4 frame grabber, which transfers 700 MB/sec on a x4 PCI Express slot.

The XCAP imaging program supports up to eight PIXCI EL1 frame grabbers making it possible to use multiple Full, Medium, or Base configuration Camera Link cameras simultaneously. The XCAP-Std program allows simultaneous use of the PIXCI EL1 with other EPIX® frame grabbers supporting different camera models, either Camera Link compatible or not. XCAP-Std also offers video-to-disk capture, subject to the performance of the host computer's RAID array.

Solutions and Support: EPIX, Inc. has been providing imaging solutions and support for OEM machine vision manufacturers and engineers since 1984. EPIX, Inc. assembles complete imaging systems with cameras, frame grabbers, high-performance PCI Express buses, and with RAID arrays for video-to-disk capture. EPIX imaging systems, custom-built to your specfications, feature Intel motherboards and processors. Contact EPIX, Inc., or an authorized distributor of EPIX® imaging products, for help selecting cameras, frame grabbers, imaging software, optics, lighting, and computer systems.

Featured In:

PRICING

PIXCI® EL1 - PCI Express x1 Interface for Camera Link cameras.
	`EL1-`		Enter your camera model or the specific order code from the full price list for customized default camera controls. Boards ordered with customized controls may still be used with other Camera Link cameras.	$895.00
	`EL1-`	`GENERIC`	Defaults to generic Camera Link controls. Customized controls may be selected for supported camera models.	$895.00

Camera Link Cable

XCAP Imaging Application Software - Detailed version information.
	`XCAP-`	`LITE`	Provided with purchase of any PIXCI® imaging board. Limited to 64MB frame buffer.	$ No Charge
	`XCAP-`	`LTD`	Adds support for up to 4 GB frame buffer or 8GB on 64 bit operating systems and other features.	$495.00
	`XCAP-`	`STD`	All image processing functions available, video to disk, and other features..	$1495.00

Programming Libraries

- Single Developer, Royalty-Free Licenses. See the XCLIB and PXIPL product pages for details.

`XCLIBLITE-`	Limited to one board, 64MB RAM, 32-bit Windows.	$195.00
`XCLIB-`	Full library for interacting with all PIXCI® boards.	$495.00
`XCLIBIPL-`	Adds optional PXIPL image processing and analysis library.	$995.00
No Library

Request More Information:

Name:
Email:
Questions, comments, requirements?

All prices F.O.B. Buffalo Grove, Illinois.
USA Terms: Net 30 Days, subject to credit acceptance.
Contact EPIX Inc., or your distributor of EPIX® imaging products, for volume discounts and OEM pricing.

EPIX, SILICON VIDEO, and PIXCI are registered trademarks of EPIX, Inc. XCAP, XCIP, XCLIB, and PXIPL are trademarks of EPIX, Inc. Other brand, product, and company names are trademarks or registered trademarks of their respective owners. Prices, terms, and specifications subject to change without notice.

Software price protection: Within 90 days of original shipment, a discount equal to the original purchase price of XCAP, XCIP, XCLIB, or XCLIB+PXIPL may be applied to a new version of the same software.

Programming libraries license a single program developer; the developed program may be reproduced without payment of royalties, as detailed in the Software License Agreement.

EPIX® imaging products are not authorized for use as critical components in life support devices or systems without the express written approval of the president of EPIX, Inc.
