Sentech

Sentech Bundle

View, Capture, Save from a 2 Megapixel / 30 FPS CCD Camera

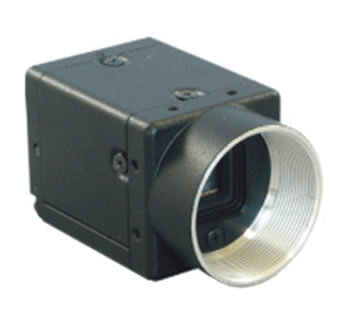

Sentech STC-CLC232A color / STC-CL232A monochrome:

  • 2 Megapixel (1620 x 1236) 1/1.8" CCD
  • 30 FPS at full resolution
  • Progressive
  • 8/10-bit
  • Communication Rate: 9,600 Baud standard or 38,400 Baud for high speed
  • Compact size: 28(W) x 28(H) x 53.5(D) mm

With:

EPIX PIXCI® EB1 Board - Up to 250 Megabyte per second burst data transfers to PCI Express x1 bus.

XCAP™ Software

  • Camera specific controls - exposure, bit depth, gain, frame rate, etc.
  • Camera operation in free-run mode for maximum frame rate sequence capture
  • Camera operation in control (trigger) mode

Camera Power Supply

3-meter Camera Link Cable

Request your Bundle Package with Pre-configured desktop computer; pre-tested for performance.
