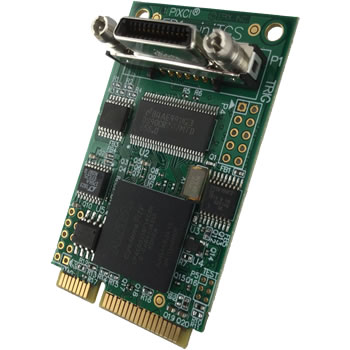

Mini PCI Express x1 Base Camera Link Test Generator

Smallest base camera link frame generator plugs into a mini PCI express card slot. Generates base camera link digital video from test patterns, captured video, or live video with sustained rates of 200 megabytes per second. A very flexible cable allows for easy mounting of the MDR or SDR connector in a small embedded chassis. Includes software to generate, view, and display images and image sequences.


  • Plugs into full length mini PCIe slot
  • 2.5 gigabit per second burst transfer rate
  • 200 megabytes per second sustained transfer rate
  • SDR camera link connector
  • Available with No SDR connector for custom cables
  • Image data DMA transferred from host memory
  • 64 bit memory addressing for extended display


  • Test images captured by a Base Camera Link frame grabber
  • Monochrome or color linear ramp test data
  • Monochrome static or moving test data
  • Bayer color static test data
  • Continuous video pixel clock
  • 20 MHz to 85 MHz pixel clock
  • 8/10/12 bit 1 tap and 2 tap test data
  • 14/16 bit 1 tap test data
  • 8 bit 3 tap test data
  • Image sequences stored in host memory


  • 1.5 volts at 200 milliamps
  • 10 pin header for trigger, strobe, frame in/out, two ttl in/two ttl out
  • 3.3 volt LVTTL signal levels on header
  • 2.0 inches (50.95mm) by 1.18 inches (30mm)
  • 1.4 oz, 41 grams
  • 3.3 volts at 150 milliamps
  • CE, ROHS Compliant
  • Generates a camera link pixel clock from 20 to 85 MHz
  • Made in U.S.A.


  • XCAP-Lite test pattern control program included with test generator purchase
  • Windows & Linux, 32 & 64-bit
