Visual Inspection System

XCAP

View, Capture, Save from a 5 Megapixel Camera

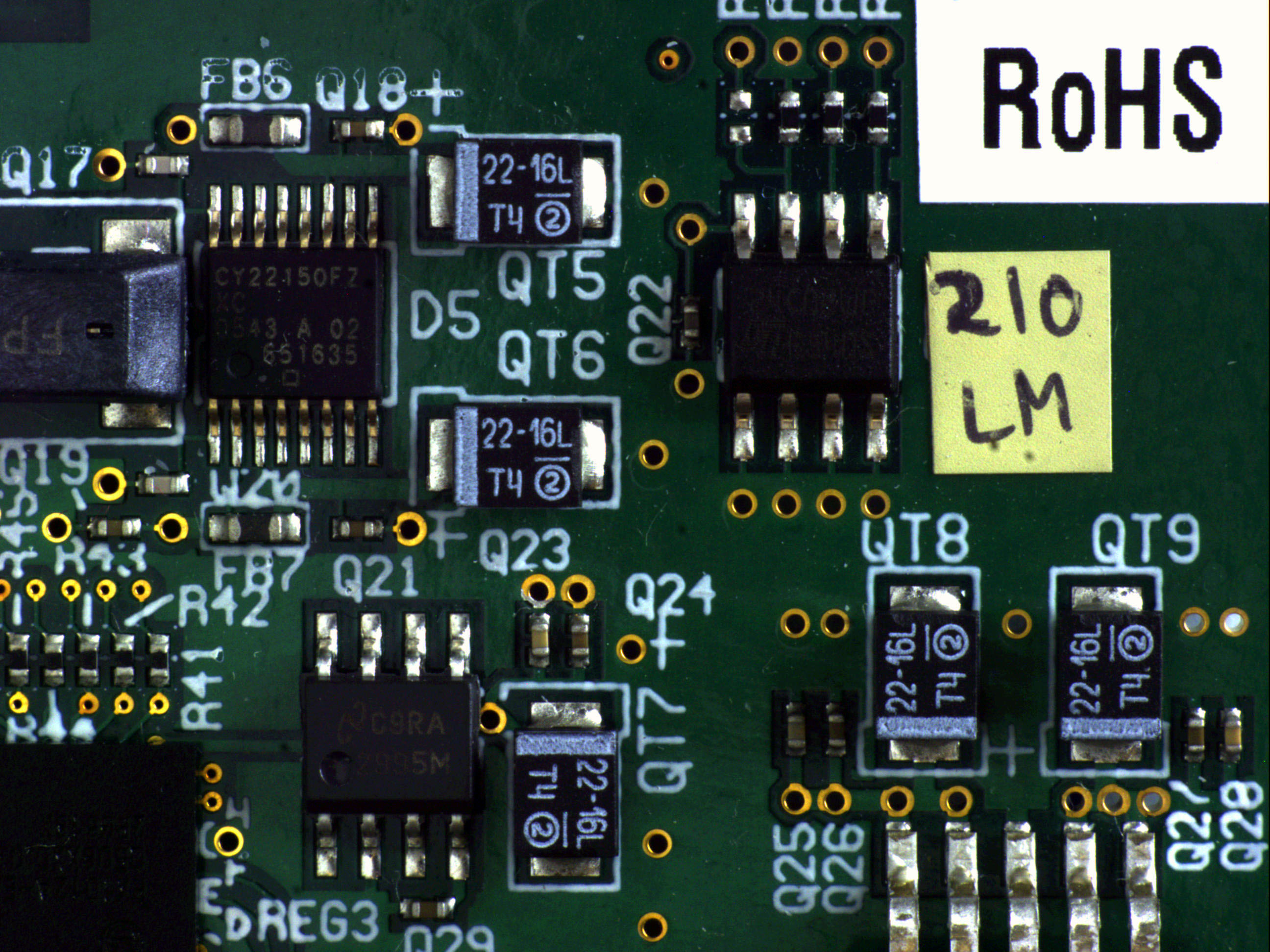

Full resolution sample image:

Suitable For:

PCB (Printed Circuit Board) Inspection
Biomedical Imaging
Quality Assurance
Defect Analysis
Solder Joints
Component Alignment
Surface Analysis

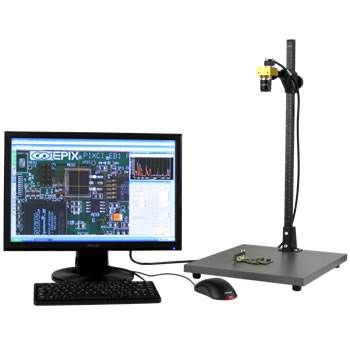

Visual Inspection System Includes:

SILICON VIDEO® 5C10 5-Megapixel (2594x1944) camera system
25mm f/1.4 C-mount Lens
XCAP-Lite Imaging Application
Intel Atom 1.6GHz CPU
2 GB RAM
160 GB 7200rpm 2.5in Hard Drive
Mini-ITX Computer Case
Cherry Mini-Keyboard & Microsoft Optical Mouse
19" LCD Monitor
Inspection Stand
Linux Installation & Configuration

Complete Price: $2195.00

Options:

Windows 7 Home OS instead of Linux $ 100.00
Windows 7 Professional OS instead of Linux $ 150.00

Notes:

Fanless, natural convection design
Mini-ITX Case Dimensions: 192(w) x 210(d) x 62(h) mm
1 SODIMM slot (supports 2GB Memory Max.)
Motherboard features:
10/100/1000Mb Ethernet
3 x USB 2.0 ports on rear
2 x USB 2.0 ports under front cover
1x PCIe mini-card connector for wireless adapter

Pricing includes integration & system test at EPIX, Inc. Prices are in US Dollars. Prices and specifications are subject to change without notice. All prices F.O.B. Buffalo Grove, Illinois. All components are covered under their respective manufacturer’s warranty.

PRICING

Visual Inspection Station:	SYS-SV5C10-VIS (Color):	$2195.00
Visual Inspection Station:	SYS-SV5M10-VIS (Mono):	$2195.00
OS Installation Options:	SYS-OPT-XP-HOME:	$100.00
OS Installation Options:	SYS-OPT-XP-PRO:	$150.00
